What is a Loopwheel?
A Loopwheel is a wheel with integral suspension, designed to reduce vibration and increase performance and provide greater comfort.
Loopwheels give you a smoother ride. They are more comfortable than standard wheels: the carbon springs absorb tiring vibration, as well as bumps and shocks. They’re designed for everyday use and are strong and durable. They don’t run as true as a spoked wheel but they’re a lot more comfortable.
Loopwheels for wheelchairs help you push over uneven streets, rough tracks and gravel paths more easily, and the carbon springs can give you extra power to get up or down kerbs. They reduce jolting and vibration, by as much as two thirds compared with a spoked wheel. Some customers tell us this helps them manage discomfort.
How does the Loopwheel technology work?

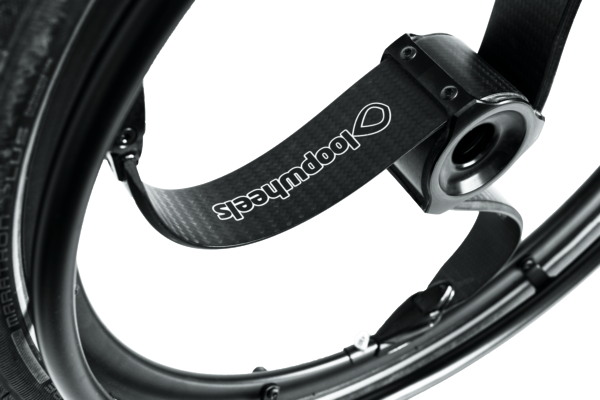

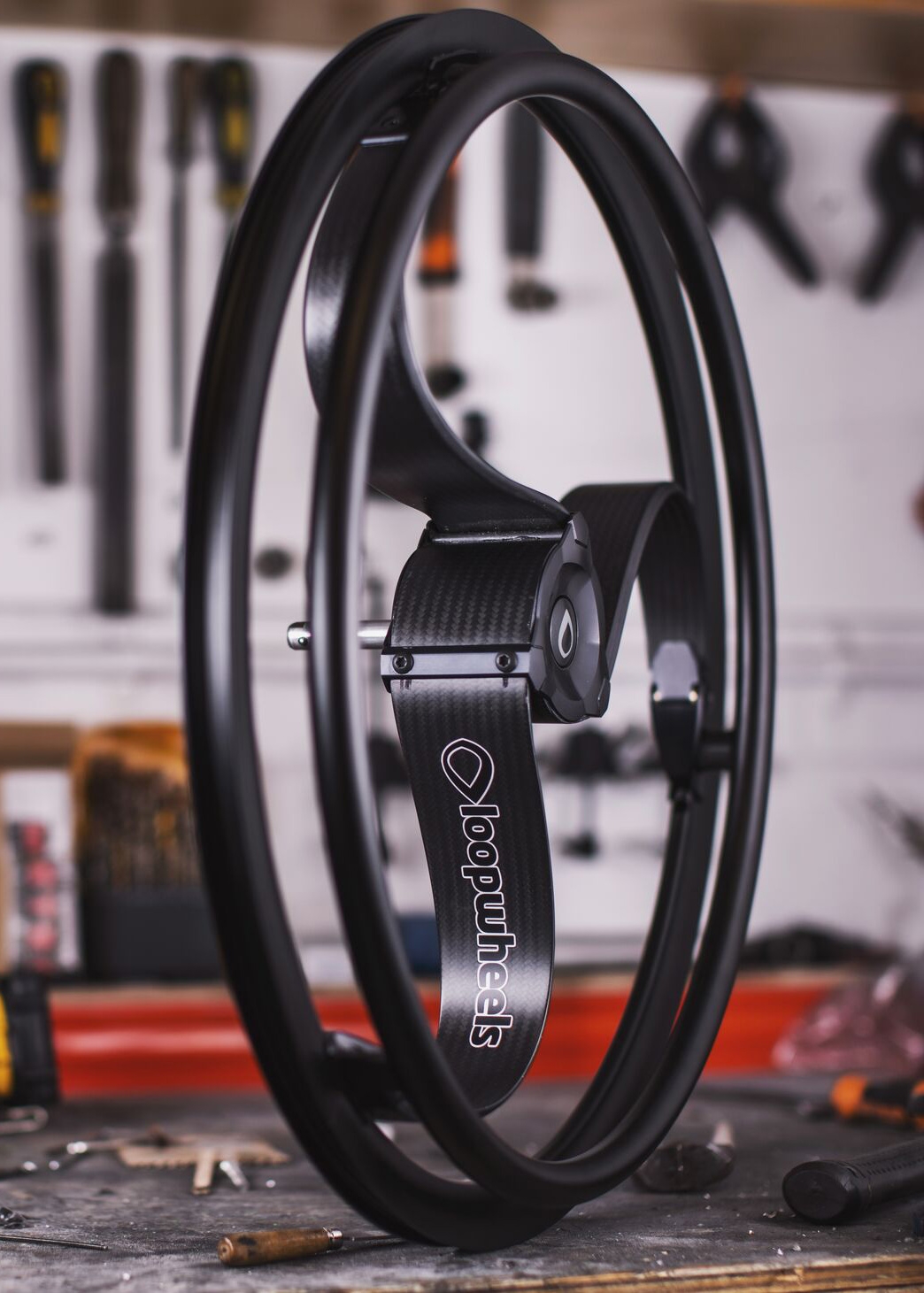

Loopwheel springs are made from a carbon composite material, carefully developed and tested to give optimum compression and lateral stability as well as strength and durability. Specially-designed connectors attach the springs to the hub and rim.
The three loops in each wheel work together as a self-correcting system. This spring system between the hub and the rim of the wheel provides suspension that constantly adjusts to uneven terrain, cushioning the rider from bumps and potholes in the road. In effect, the hub floats within the rim, adjusting constantly as shocks from an uneven road hit the rim of the wheel.
The spring configuration allows the torque to be transferred smoothly between the hub and the rim.
Which spring rate is right for me?

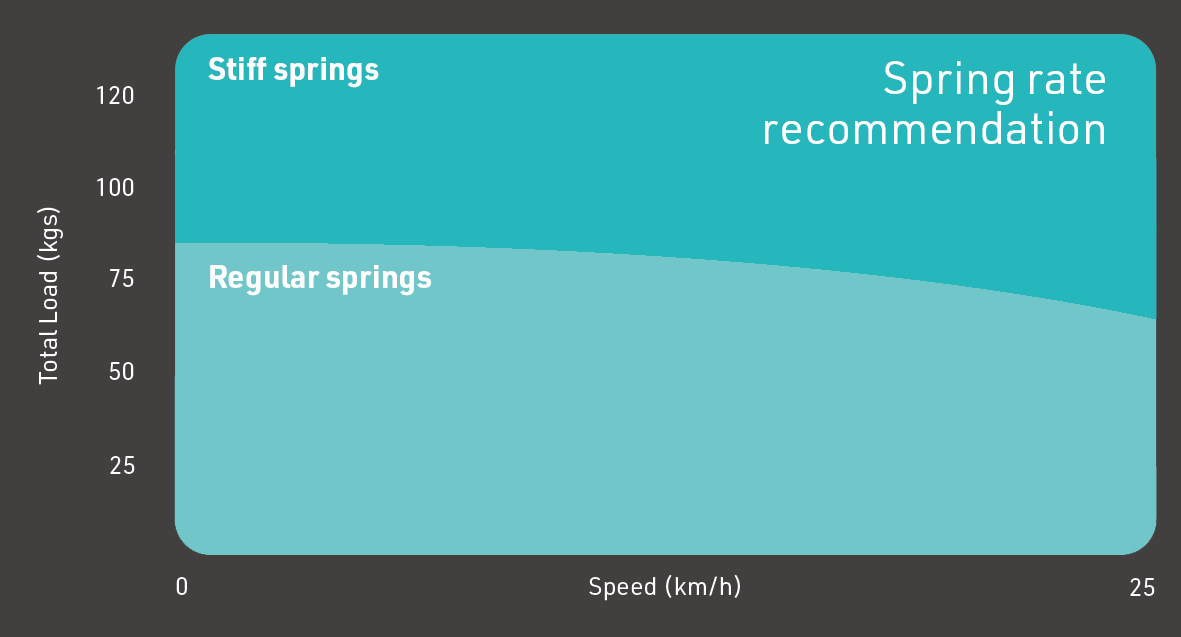

The springs use hi-tech carbon composite materials and are available in 2 spring strengths (Regular and Stiff). These rates will allow you to get the best comfort for your weight and the typical activities that you undertake.
The right tyre for the right job

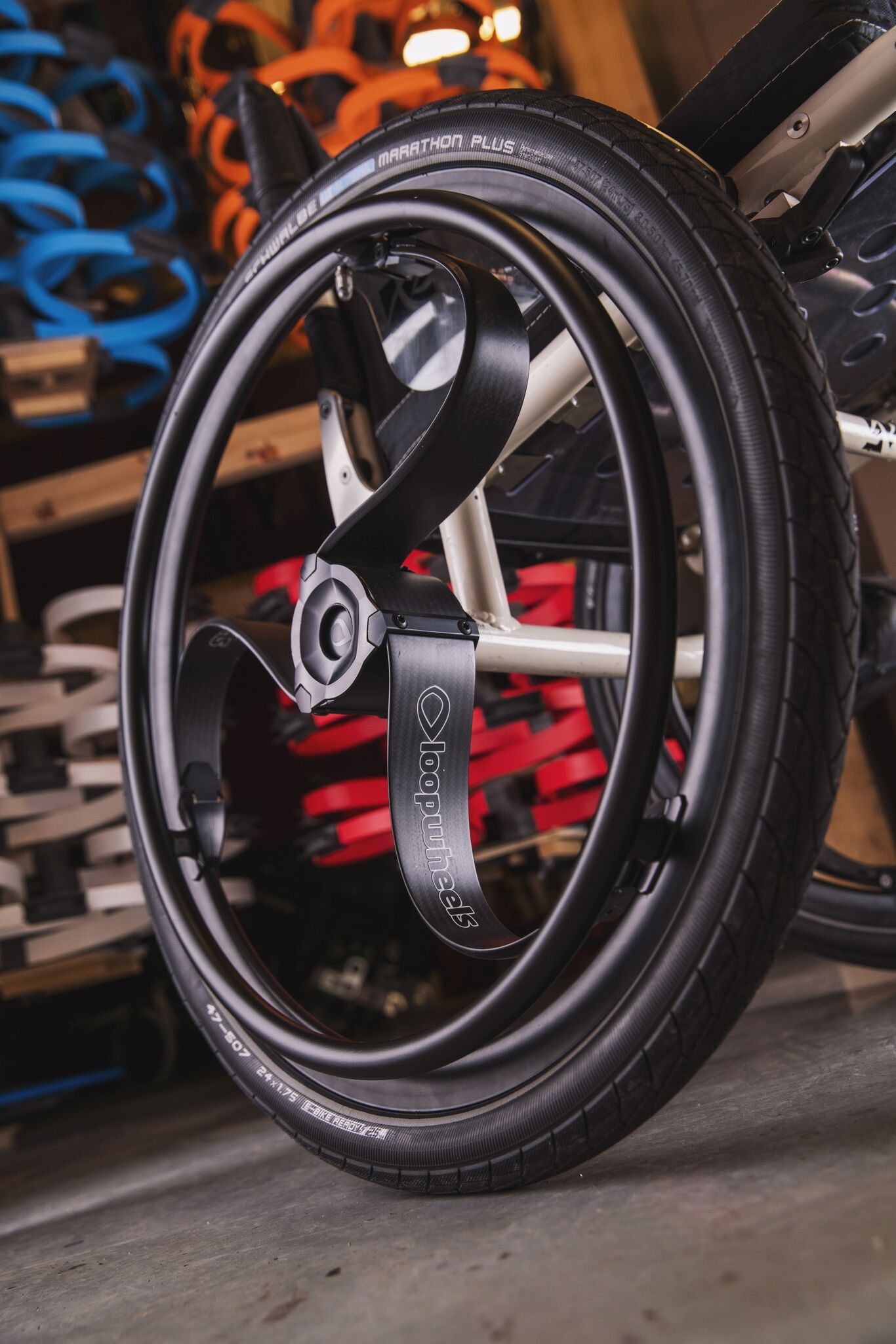

This 507 wheel takes a larger, MTB style tyre, to bring the whole wheel with tyre to 24″. This size is a standard juvenile MTB size so a wide choice of tyres are available from online suppliers and bike shops, as an alternative to the Marathon Plus MTB tyre we supply.
LOOPWHEELS ARE NOT JUST A WHEEL, THEY'RE A SUSPENSION SYSTEM!
The Revolutionary Loopwheels
The carbon springs give you extra power to get up or down kerbs/curbs. They're wonderfully comfortable over cobblestones. Potholes needn't be a problem any more!
Loopwheels are more comfortable than standard wheelchair wheels. They absorb tiring vibration, as well as bumps and shocks.
Specifications
| Wheel Size: | 507 mm / 24" when fitted with MTB tyre |
| ETRTO/Tyre Size: | 47 - 507 (24 x 1.75) |
| Axle Bearing: | 1/2" (12.7mm) and 12mm |
| Hub: | Machined, black/blue/red/purple anodised aluminium |
| Spring/Loop Materials: | Ultra lightweight carbon fibre |
| Logo Colour: | White reflective logos |
| Push Rim: | Various options available |
| Push Rim Offset: | 15mm only |
| Rim: | Double-walled aluminium, black |
| Inner Rim Width: | 16mm |
| Bearing Width at faces: | 1.8" (45.8mm) |
| Wheel Weight: | 1.33kg (2.93lb) |
| Minimum User Weight: | 50kg |
| Maximum Load: | 120kg (User and chair) |
| Maximum Speed: | 25 km/h |
| Spring Rate: | Regular or Stiff |
Features
- A wheel with world-class suspension, for off-road use with a MTB tyre and a power attachment
- A high-performance suspension wheel specifically designed for maximum comfort off-road when using a power attachment
- Fitted with a choice of 2 Mountain Bike Tyres for extra grip and comfort
- Extreme comfort, extreme stability, extreme freedom: go wherever the path takes you
- Extreme ride quality and comfort on any adventure
- Now with colour anodised hub and rim hinge options
Shipping & Returns
Here at Spokz our emphasis is on value for money and customer service. We now offer free tracked Express UK delivery with DHL on orders of over £50 to mainland UK. Any orders under £50 will be charged £6.25 for our DHL next day service or for smaller items you can choose £2.50 Royal Mail 48 Tracked which is a 2 working day service (not guaranteed).
All pre-order items are delivered free of charge to any destination apart from international orders.

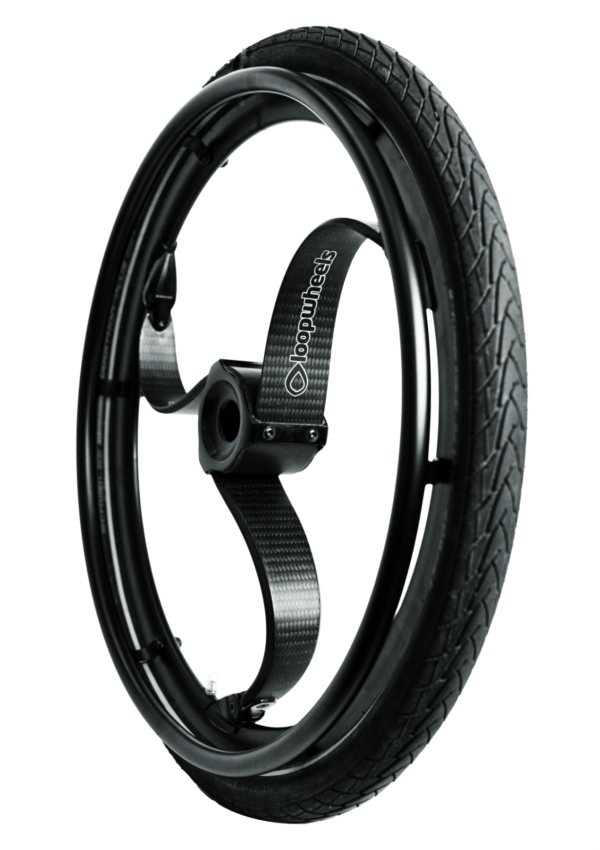

Find our more about our delivery & returnsLoopwheels Extreme - Wheelchair Suspension Wheels - (pair)
Extra Stability, Extra Speed, Extra Freedom

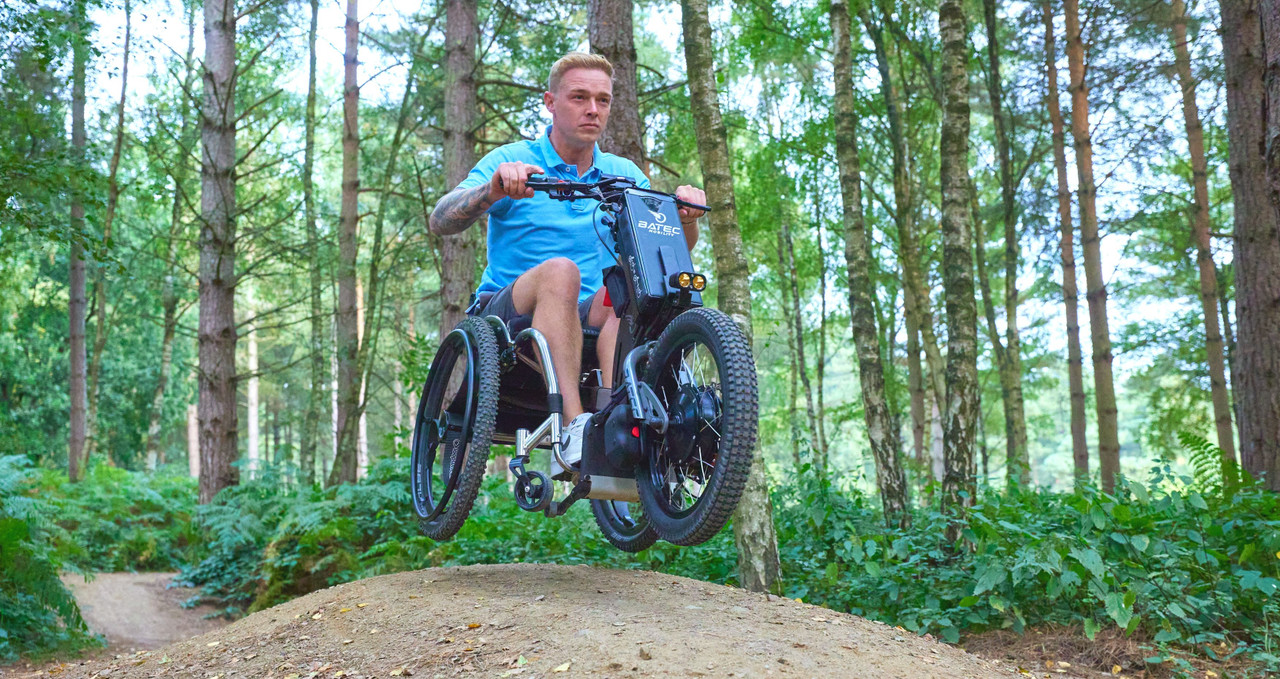

Loopwheels have developed a robust wheel with world-class suspension that works at higher speeds, for off-road use with a MTB tire and power attachments.
The springs use hi-tech carbon composite materials and are available in 2 spring strengths (Regular and Stiff). These rates will allow you to get the best comfort for your weight and the typical activities that you undertake.
Weighing under 3lbs (1.33kg) per wheel, and removing much more vibration than any other brand of a wheel, it is the definitive wheel if you love travelling on tracks and off-road with a handbike or power.

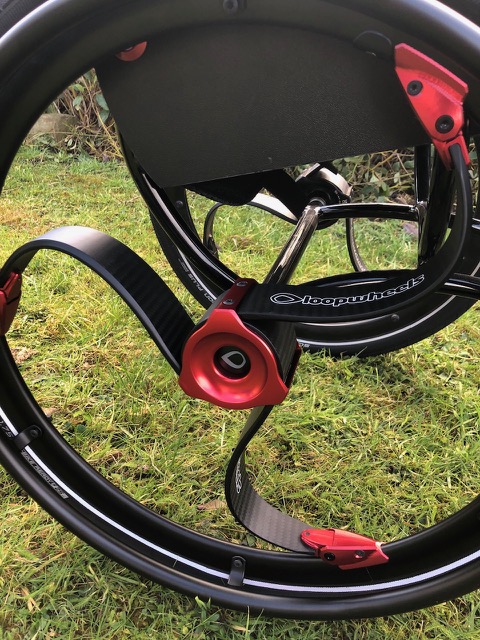

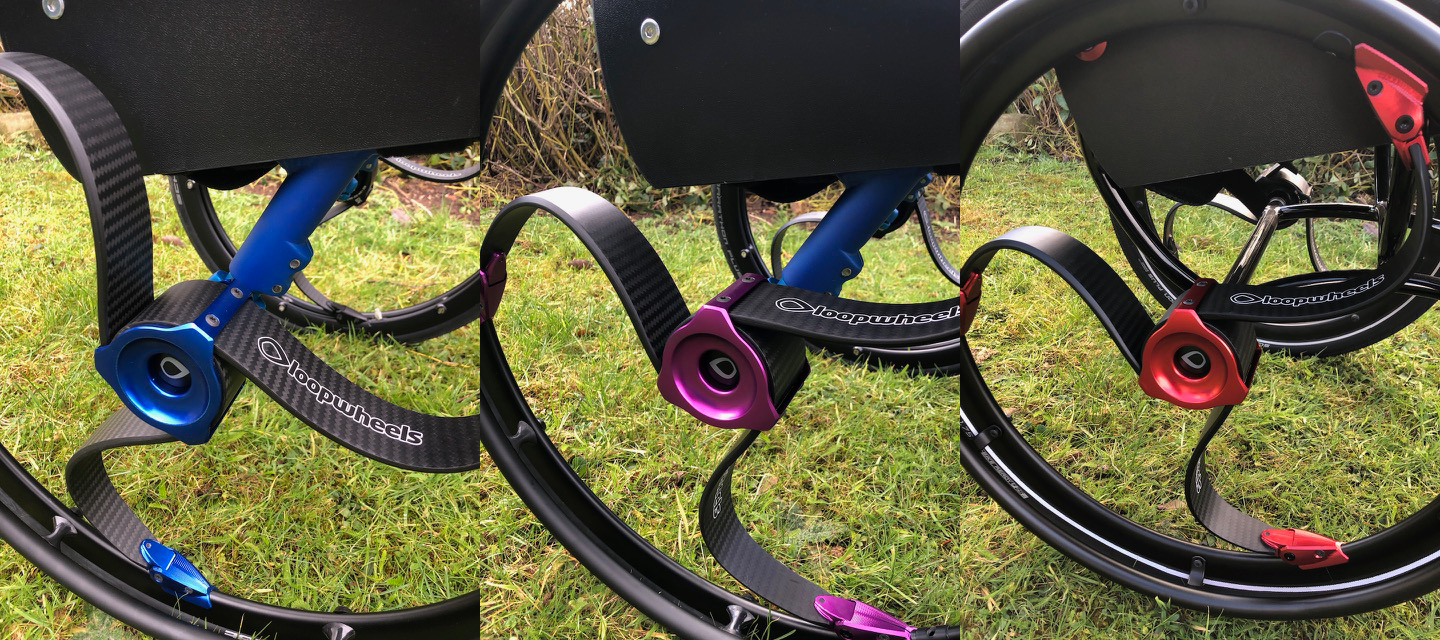

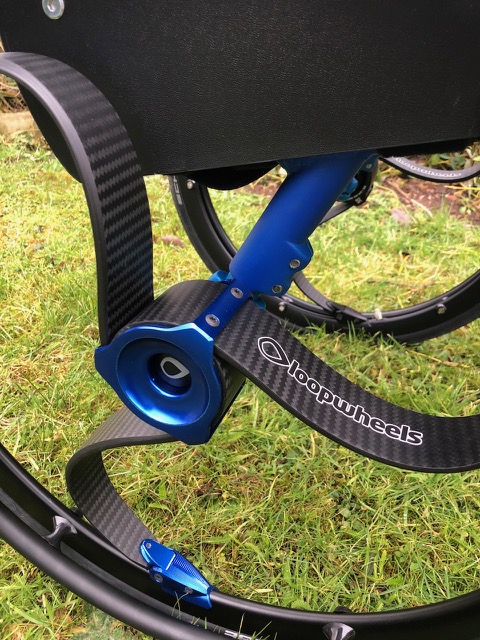

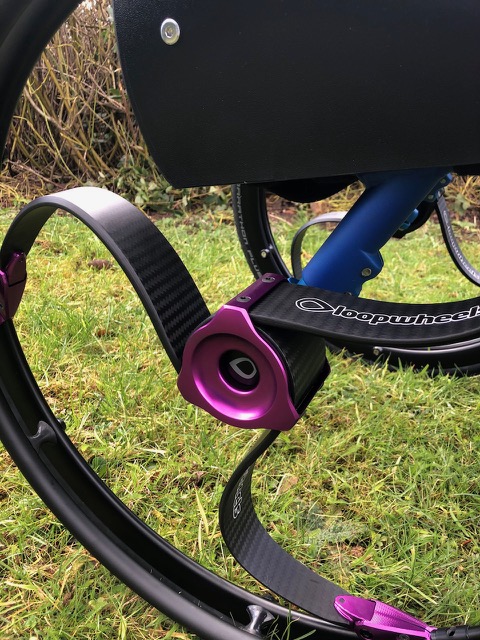

Now available with anodised metallic coloured hubs and rim hinges.
NOT RECOMMENDED FOR USE WITH SOLID TYRES
PRE-ORDER ITEM - Due to the large number of options available, this product is made to order. From build to delivery is usually 3-4 weeks. We will notify you once the product/s are ready to ship. Express shipping is not available for this item.
